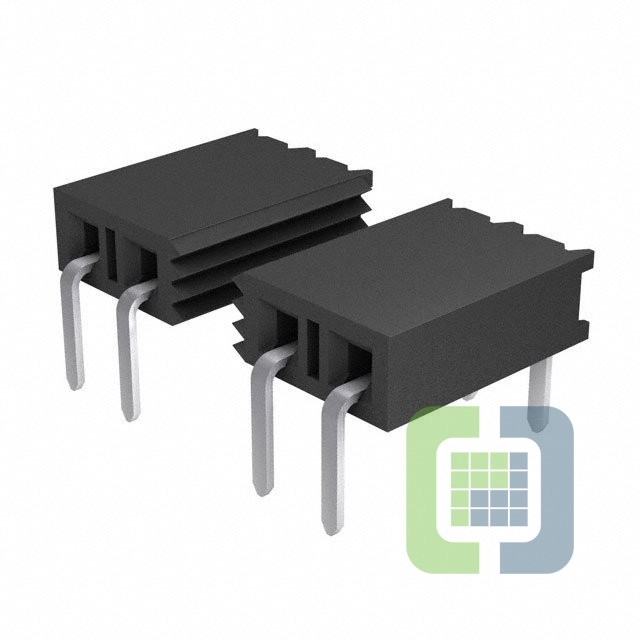

BCS-144-L-S-HE
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 44POS 0.1 GOLD PCB R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet BCS-144-L-S-HE Datasheet
-
ECAD Model
- Share
In Stock: 162
Can ship immediately
Pricing:
- 1$8.33
- 10$7.98054
- 25$7.28688
- 50$6.93962
- 100$6.59268
- 250$5.89874
- 500$5.55176
Quote It
Technical Details
- Series:Tiger Claw™ BCS
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:44
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.110" (2.79mm)
- Contact Length - Post:0.125" (3.18mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):4.6A per Contact
- Voltage Rating:475VAC
