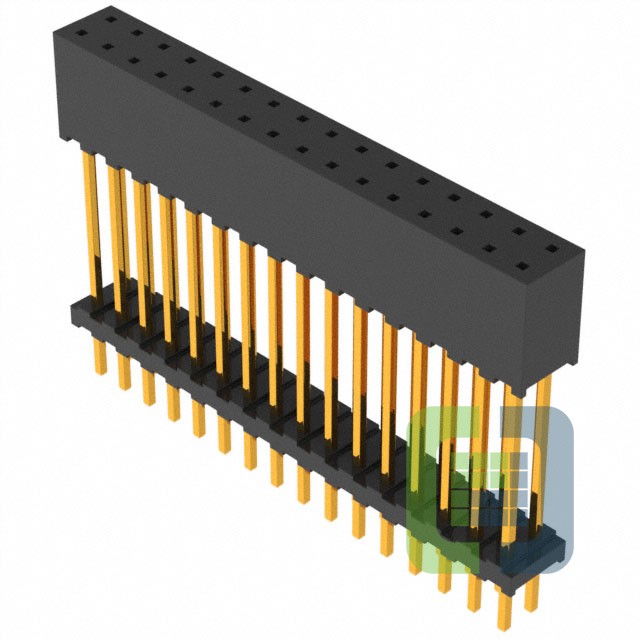

ESQT-116-02-G-D-720
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 32POS 0.079 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
-
ECAD Model
- Share
In Stock: 153
Can ship immediately
Pricing:
- 1$10.96
- 10$10.13863
Quote It
Technical Details
- Series:ESQT
- Package:Tube
- Part Status:Active
- Connector Type:Elevated Socket
- Contact Type:Forked
- Style:Board to Board or Cable
- Number of Positions:32
- Number of Positions Loaded:All
- Pitch - Mating:0.079" (2.00mm)
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:20.0µin (0.51µm)
- Insulation Color:Black
- Insulation Height:0.720" (18.30mm)
- Contact Length - Post:0.130" (3.30mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):4.5A per Contact
- Voltage Rating:-
