HLE-150-02-G-DV-PE-BE
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

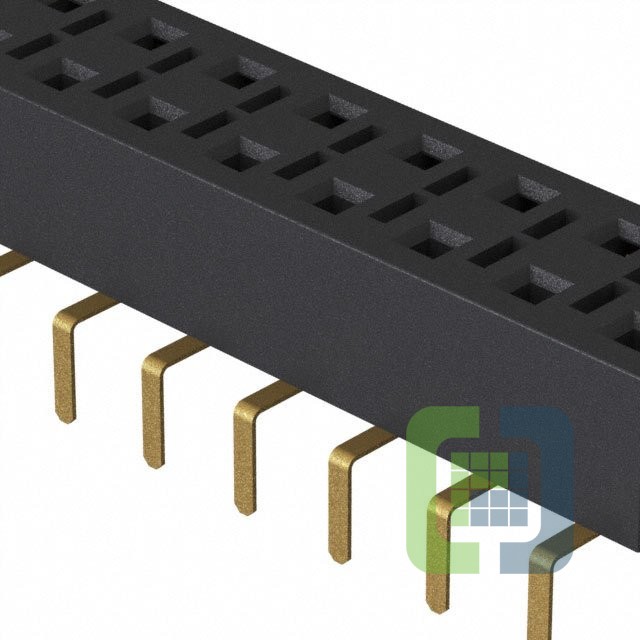

- DescriptionCONN RCPT 100POS 0.1 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
-
ECAD Model
- Share
In Stock: 132
Can ship immediately
Pricing:
- 1$18.98
Quote It
Technical Details
- Series:HLE
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle, Bottom Entry, Pass Through
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:100
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.138" (3.50mm)
- Contact Length - Post:0.090" (2.29mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):4.1A per Contact
- Voltage Rating:400VAC
