SSM-150-S-SH
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

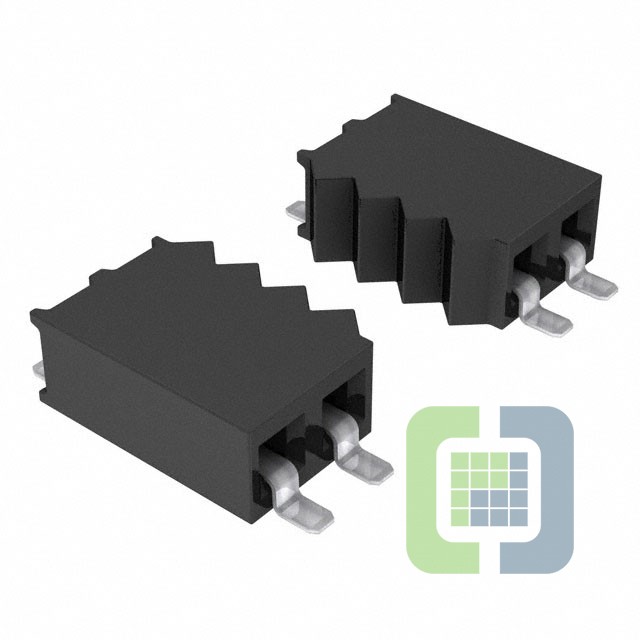

- DescriptionCONN RCPT 50POS 0.1 GOLD SMD R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SSM-150-S-SH Datasheet
-
ECAD Model
- Share
In Stock: 122
Can ship immediately
Pricing:
- 1$19.47
- 4$14.79126
Quote It
Technical Details
- Series:SSM
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:50
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.125" (3.18mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):5.2A per Contact
- Voltage Rating:405VAC, 572VDC
