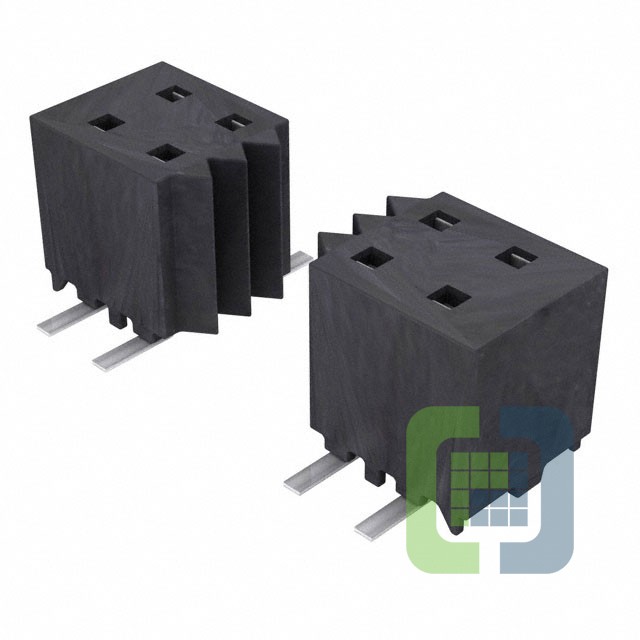

MMS-125-02-T-DV
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 50POS 0.079 TIN SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet MMS-125-02-T-DV Datasheet
-
ECAD Model
- Share
In Stock: 137
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:MMS
- Package:Tube
- Part Status:Discontinued at Digi-Key
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:50
- Number of Positions Loaded:All
- Pitch - Mating:0.079" (2.00mm)
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Insulation Color:Black
- Insulation Height:0.177" (4.50mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 105°C
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):3.9A per Contact
- Voltage Rating:-
