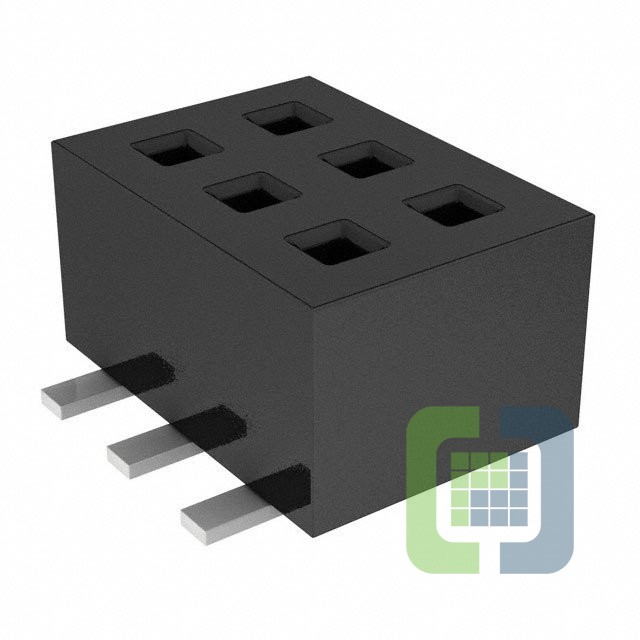

CLP-103-02-S-D-BE-TR

Technical Details

• Series:CLP
• Package:Tape & Reel (TR)
• Part Status:Active
• Connector Type:Receptacle, Bottom Entry
• Contact Type:Female Socket
• Style:Board to Board
• Number of Positions:6
• Number of Positions Loaded:All
• Pitch - Mating:0.050" (1.27mm)
• Number of Rows:2
• Row Spacing - Mating:0.050" (1.27mm)
• Mounting Type:Surface Mount
• Termination:Solder
• Fastening Type:Push-Pull

• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:30.0µin (0.76µm)
• Insulation Color:Black
• Insulation Height:0.084" (2.14mm)
• Contact Length - Post:-
• Operating Temperature:-55°C ~ 125°C
• Material Flammability Rating:UL94 V-0
• Contact Finish - Post:Tin
• Mated Stacking Heights:-
• Ingress Protection:-
• Features:-
• Current Rating (Amps):3.3A per Contact
• Voltage Rating:240VAC, 330VDC
