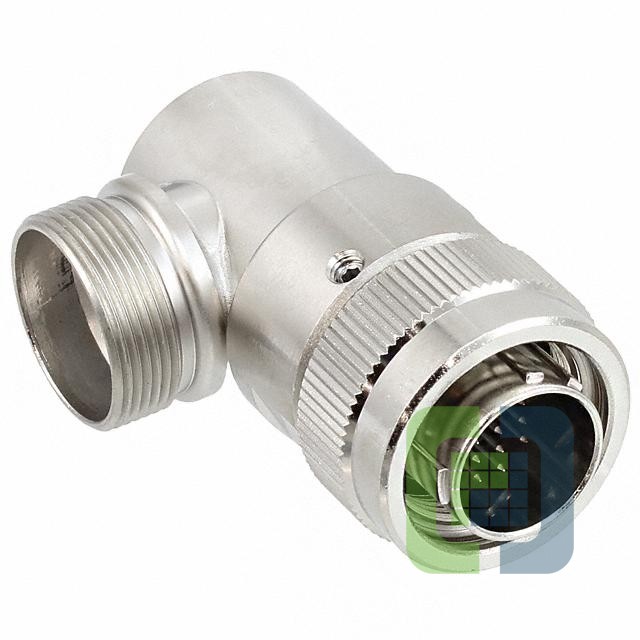

HR22-12WTLP-20P(73)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG MALE 20P SOLDER CUP
- CategoryCircular Connectors
- Datasheet HR22-12WTLP-20P(73) Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:HR22
- Package:Bulk
- Part Status:Obsolete
- Connector Type:Plug, Male Pins
- Number of Positions:20
- Shell Size - Insert:12
- Shell Size, MIL:-
- Mounting Type:Free Hanging (In-Line), Right Angle
- Mounting Feature:-
- Termination:Solder Cup
- Fastening Type:Threaded
- Orientation:Keyed
- Shell Material:Zinc Alloy
- Shell Finish:Nickel
- Contact Finish - Mating:Silver
- Color:Silver
- Ingress Protection:IP67/IP68 - Dust Tight, Waterproof
- Material Flammability Rating:UL94 V-0
- Features:Backshell, Coupling Nut
- Shielding:Unshielded
- Current Rating (Amps):2A
- Voltage Rating:100VAC, 140VDC
- Cable Opening:-
- Operating Temperature:-25°C ~ 85°C
