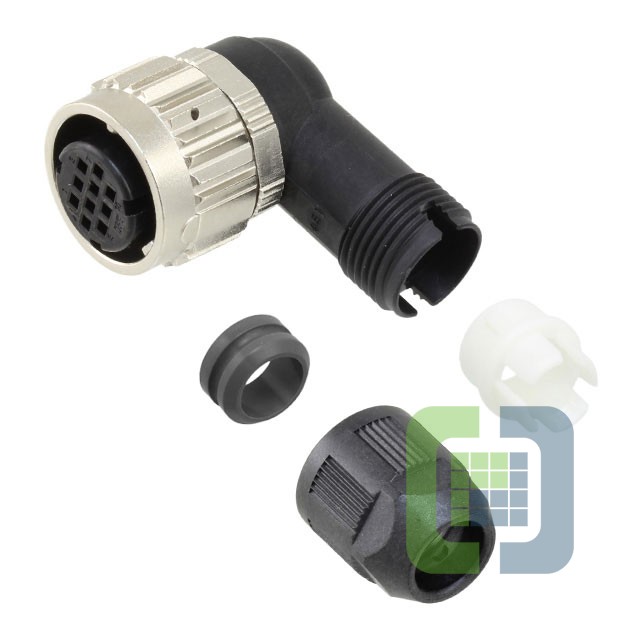

HR08D-12WLPN-10S

Technical Details

• Series:HR08D
• Package:Bulk
• Part Status:Obsolete
• Connector Type:Plug, Female Sockets
• Number of Positions:10
• Shell Size - Insert:12
• Shell Size, MIL:-
• Mounting Type:Free Hanging (In-Line), Right Angle
• Mounting Feature:-
• Termination:Solder Cup
• Fastening Type:Push-Twist
• Orientation:Keyed

• Shell Material:Zinc Alloy
• Shell Finish:Nickel
• Contact Finish - Mating:Gold
• Color:Black, Silver
• Ingress Protection:IP67/IP68 - Dust Tight, Waterproof
• Material Flammability Rating:UL94 V-0
• Features:Backshell, Coupling Nut, Rotatable
• Shielding:Unshielded
• Current Rating (Amps):3A
• Voltage Rating:200VAC, 250VDC
• Cable Opening:0.256" ~ 0.287" (6.50mm ~ 7.30mm)
• Operating Temperature:-20°C ~ 85°C
