TXD2-2M-12V

Panasonic
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionRELAY GEN PURPOSE DPDT 1A 12VDC
  • Category
  • Datasheet TXD2-2M-12V Datasheet
  • ECAD Model
  • Share
In Stock: 180

Can ship immediately

Pricing:
  • 1$4.54
  • 40$4.54

Quote It

Technical Details

  • Series:TX-D
  • Package:Tube
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:12VDC
  • Contact Form:DPDT (2 Form D)
  • Contact Rating (Current):1 A
  • Switching Voltage:110VDC - Max
  • Coil Current:20.8 mA
  • Coil Type:Non Latching
  • Features:-



  • Termination Style:PC Pin
  • Seal Rating:Sealed - Fully
  • Coil Insulation:-
  • Must Operate Voltage:9 VDC
  • Must Release Voltage:1.2 VDC
  • Operate Time:4 ms
  • Release Time:4 ms
  • Operating Temperature:-40°C ~ 85°C
  • Contact Material:Silver (Ag), Gold (Au)
  • Relay Type:General Purpose

Related Products


TXD2-2M-1.5V

RELAY GEN PURPOSE DPDT 1A 1.5VDC

TXD2-2M-1.5V Datasheet
  • 1: $4.54000
  • 40: $4.54000

TXD2-2M-4.5V

RELAY GEN PURPOSE DPDT 1A 4.5VDC

TXD2-2M-4.5V Datasheet
  • 1: $4.54000
  • 40: $4.54000

TXD2-2M-5V

RELAY GEN PURPOSE DPDT 1A 5VDC

TXD2-2M-5V Datasheet
  • 1: $4.54000
  • 40: $4.54000

TXD2-2M-6V

RELAY GEN PURPOSE DPDT 1A 6VDC

TXD2-2M-6V Datasheet
  • 1: $4.54000
  • 40: $4.54000

TXD2-2M-9V

RELAY GEN PURPOSE DPDT 1A 9VDC

TXD2-2M-9V Datasheet
  • 1: $4.54000
  • 40: $4.54000

TXS2-L-24V-1

RELAY GEN PURPOS DPDT 10MA 24VDC

TXS2-L-24V-1 Datasheet
  • 1: $4.54000
  • 40: $4.54000

TXS2SS-24V

RELAY GEN PURPOSE DPDT 1A 24VDC

TXS2SS-24V Datasheet
  • 1: $4.54000
  • 40: $4.54000

TX2SA-LT-4.5V-TH

RELAY GEN PURPOSE DPDT 2A 4.5V

TX2SA-LT-4.5V-TH Datasheet
  • 1: $4.56000
  • 40: $4.56000

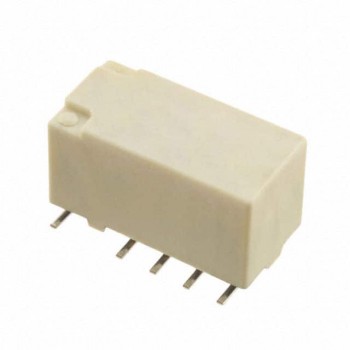

TX2SS-LT-4.5V-TH

RELAY GEN PURPOSE DPDT 2A 4.5V

TX2SS-LT-4.5V-TH Datasheet
  • 1: $4.56000
  • 40: $4.56000

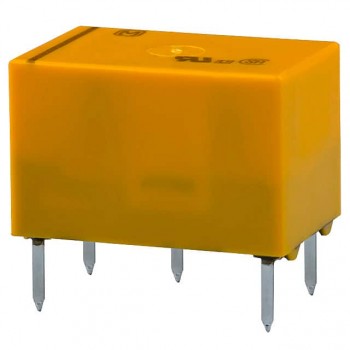

DS1E-M-DC24V-TB
