G7J-3A1B-P AC100/120

Omron Automation & Safety Services
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionRELAY GEN PURPOSE 4PST 25A 120V
  • Category
  • Datasheet G7J-3A1B-P AC100/120 Datasheet
  • ECAD Model
  • Share
In Stock: 131

Can ship immediately

Pricing:
  • 1$42.64

Quote It

Technical Details

  • Series:G7J
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:120VAC
  • Contact Form:4PST-3NO/1NC (3 Form A, 1 Form B)
  • Contact Rating (Current):25 A
  • Switching Voltage:250VAC, 125VDC - Max
  • Coil Current:21.6 mA
  • Coil Type:Non Latching
  • Features:Test Button



  • Termination Style:PC Pin
  • Seal Rating:-
  • Coil Insulation:-
  • Must Operate Voltage:75 VAC
  • Must Release Voltage:18 VAC
  • Operate Time:50 ms
  • Release Time:50 ms
  • Operating Temperature:-25°C ~ 60°C
  • Contact Material:-
  • Relay Type:General Purpose

Related Products


MGN1A-AC120

RELAY GEN PURPOSE SPST 30A 120V

MGN1A-AC120 Datasheet
  • 1: $42.64000

MGN1A-AC24

RELAY GEN PURPOSE SPST 30A 24V

MGN1A-AC24 Datasheet
  • 1: $42.64000

G7J-2A2B-B-W1 DC12

RELAY GEN PURPOSE 4PST 25A 12V

G7J-2A2B-B-W1 DC12 Datasheet
  • 1: $42.64000

G7J-2A2B-T AC100/120

RELAY GEN PURPOSE 4PST 25A 120V

G7J-2A2B-T AC100/120 Datasheet
  • 1: $42.64000

G7J-2A2B-T AC24

RELAY GEN PURPOSE 4PST 25A 24V

G7J-2A2B-T AC24 Datasheet
  • 1: $42.64000

G7J-2A2B-T DC48

RELAY GEN PURPOSE 4PST 25A 48V

G7J-2A2B-T DC48 Datasheet
  • 1: $42.64000

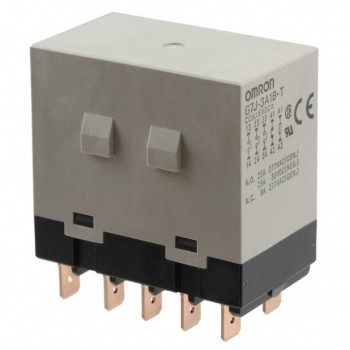

G7J-3A1B-T AC24
