CF30D0026

Carlo Gavazzi
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionRLY DPDT 30A 6VDC
  • Category
  • Datasheet CF30D0026 Datasheet
  • ECAD Model
  • Share
In Stock: 172

Can ship immediately

Pricing:
  • 1$45.0004
  • 100$38.47526

Quote It

Technical Details

  • Series:CF30
  • Package:Box
  • Part Status:Active
  • Mounting Type:Chassis Mount
  • Coil Voltage:6VDC
  • Contact Form:DPDT (2 Form C)
  • Contact Rating (Current):30 A
  • Switching Voltage:277VAC, 30VDC - Max
  • Coil Current:272.7 mA
  • Coil Type:Non Latching
  • Features:-



  • Termination Style:Quick Connect - 0.250" (6.3mm)
  • Seal Rating:Sealed - Fully
  • Coil Insulation:Class F
  • Must Operate Voltage:4.5 VDC
  • Must Release Voltage:0.6 VDC
  • Operate Time:15 ms
  • Release Time:10 ms
  • Operating Temperature:-55°C ~ 85°C
  • Contact Material:Silver Tin Oxide (AgSnO)
  • Relay Type:General Purpose

Related Products


R04-5A30-12

RELAY-30AMP-A/C 12V

  • 1: $45.10000

HGPRS-P2C12ZC

2P OCTAL 12A 24VDC HERM SLD RLY

  • 1: $45.12000

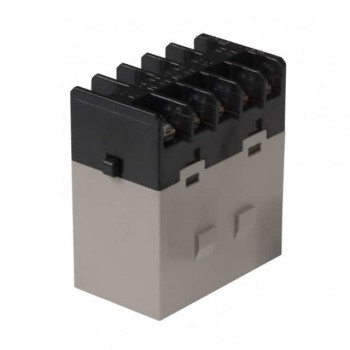

G7J-2A2B-B DC110

RELAY GEN PURPOSE 4PST 25A 110V

G7J-2A2B-B DC110 Datasheet
  • 1: $46.74000

G7J-2A2B-P DC12

RELAY GEN PURPOSE 4PST 25A 12V

G7J-2A2B-P DC12 Datasheet
  • 1: $46.74000

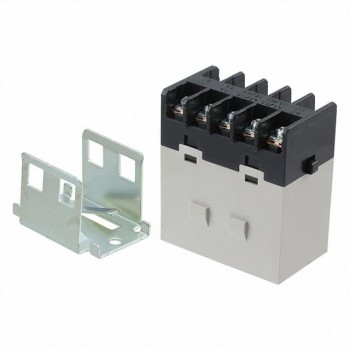

G7J-3A1B-B-KM-W1 DC48
