8689850000

Weidmuller
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionRELAY GEN PURPOSE DPDT 12A 12V
  • Category
  • Datasheet 8689850000 Datasheet
  • ECAD Model
  • Share
In Stock: 155

Can ship immediately

Pricing:
  • 1$20.754
  • 10$19.766

Quote It

Technical Details

  • Series:RCM
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Socketable
  • Coil Voltage:12VDC
  • Contact Form:DPDT (2 Form C)
  • Contact Rating (Current):12 A
  • Switching Voltage:400VAC - Max
  • Coil Current:62.5 mA
  • Coil Type:Non Latching
  • Features:Lighted Indicator, Test Button



  • Termination Style:Plug In, Quick Connect - 0.110" (2.8mm)
  • Seal Rating:-
  • Coil Insulation:-
  • Must Operate Voltage:9 VDC
  • Must Release Voltage:1.2 VDC
  • Operate Time:15 ms
  • Release Time:10 ms
  • Operating Temperature:-40°C ~ 70°C
  • Contact Material:Silver Nickel (AgNi)
  • Relay Type:General Purpose

Related Products


8689870000

RELAY GEN PURPOSE DPDT 12A 24V

8689870000 Datasheet
  • 1: $20.75400
  • 10: $19.76600

8689770000

RELAY GEN PURPOSE DPDT 12A 24V

8689770000 Datasheet
  • 1: $20.75400
  • 10: $19.76600

8690050000

RELAY GEN PURPOSE 3PDT 10A 24V

8690050000 Datasheet
  • 1: $20.75400
  • 10: $19.76600

6-1415537-9
  • 1: $20.77500
  • 250: $19.59000

2617860000

RELAY MODULE, 12 V DC 20

  • 1: $20.80000

2618400000

RELAY MODULE, 24 V DC 20 %, GREE

  • 1: $20.80000

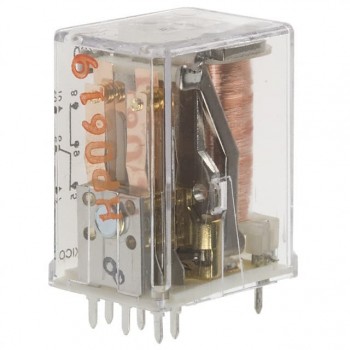

R10-E2X2-V185
