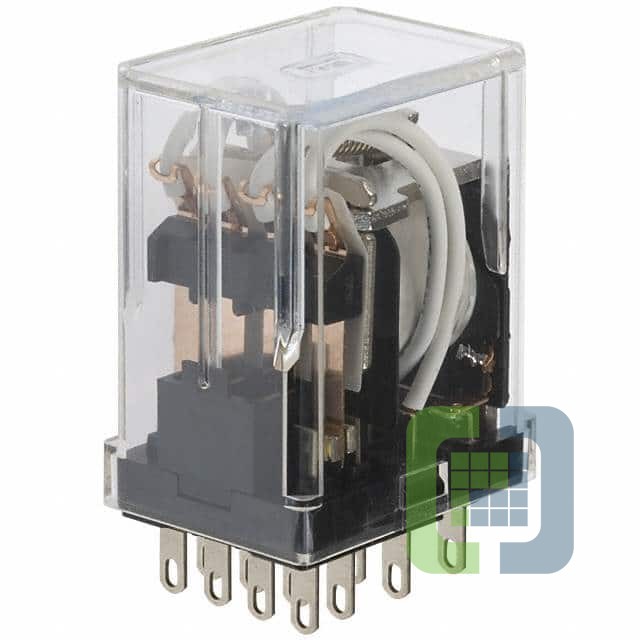

HC2-HL-AC120V-F
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE DPDT 7A 120V
- Category
- Datasheet HC2-HL-AC120V-F Datasheet
-
ECAD Model
- Share
In Stock: 153
Can ship immediately
Pricing:
- 1$16.25
- 10$14.44
- 25$13.718
- 50$12.996
- 100$12.274
- 250$11.191
- 500$10.469
- 1,000$9.9275
Quote It
Technical Details
- Series:HC
- Package:Bulk
- Part Status:Obsolete
- Mounting Type:Socketable
- Coil Voltage:120VAC
- Contact Form:DPDT (2 Form C)
- Contact Rating (Current):7 A
- Switching Voltage:250VAC - Max
- Coil Current:10.9 mA
- Coil Type:Non Latching
- Features:Lighted Indicator
- Termination Style:Plug In
- Seal Rating:-
- Coil Insulation:-
- Must Operate Voltage:96 VAC
- Must Release Voltage:36 VAC
- Operate Time:20 ms
- Release Time:20 ms
- Operating Temperature:-50°C ~ 60°C
- Contact Material:Silver Alloy, Cadmium Free
- Relay Type:General Purpose
