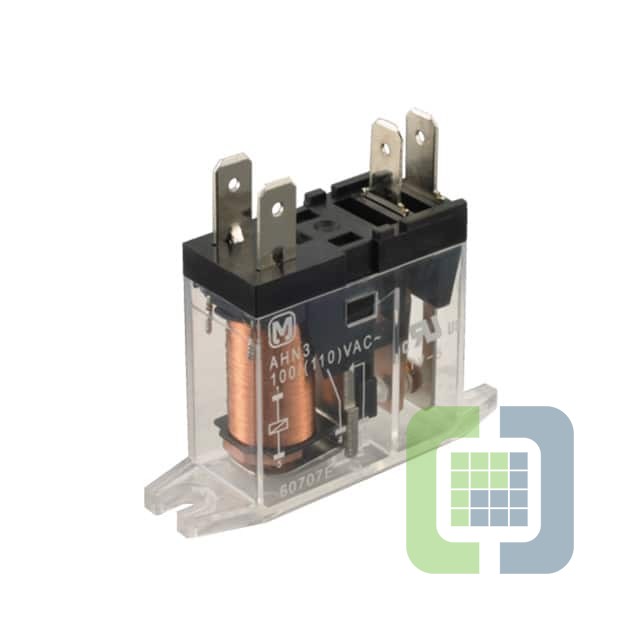

AHN36006

Technical Details

• Series:AHN
• Package:Bulk
• Part Status:Obsolete
• Mounting Type:Chassis Mount
• Coil Voltage:6VDC
• Contact Form:SPST-NO (1 Form A)
• Contact Rating (Current):16 A
• Switching Voltage:250VAC, 30VDC - Max
• Coil Current:88.2 mA
• Coil Type:Non Latching
• Features:-

• Termination Style:Quick Connect - 0.187" (4.7mm)
• Seal Rating:-
• Coil Insulation:-
• Must Operate Voltage:4.2 VDC
• Must Release Voltage:0.6 VDC
• Operate Time:15 ms
• Release Time:5 ms
• Operating Temperature:-40°C ~ 70°C
• Contact Material:Silver Tin Oxide (AgSnO)
• Relay Type:General Purpose
