ADG508AKR-REEL7

Rochester Electronics
In Stock: 1,314

Can ship immediately

Pricing:
  • 1$3.97

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Switch Circuit:-
  • Multiplexer/Demultiplexer Circuit:8:1
  • Number of Circuits:1
  • On-State Resistance (Max):300Ohm
  • Channel-to-Channel Matching (ΔRon):15Ohm
  • Voltage - Supply, Single (V+):10.8V ~ 16.5V
  • Voltage - Supply, Dual (V±):±10.8V ~ 16.5V



  • Switch Time (Ton, Toff) (Max):300ns, 300ns
  • -3db Bandwidth:-
  • Charge Injection:4pC
  • Channel Capacitance (CS(off), CD(off)):5pF, 22pF
  • Current - Leakage (IS(off)) (Max):1nA
  • Crosstalk:-
  • Operating Temperature:-40°C ~ 85°C (TA)
  • Mounting Type:Surface Mount
  • Package / Case:16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package:16-SOIC

Related Products


MAX4669CPE

DUAL SPST ANALOG SWITCH

MAX4669CPE Datasheet
  • 1: $3.98000

MAX4513EPE+

SPST ANALOG SWITCH

MAX4513EPE+ Datasheet
  • 1: $3.98000

SW7510FQ

QUAD SPST JFET SWITCH

  • 1: $4.00000

ADG433BN

QUAD SPST SWITCH

ADG433BN Datasheet
  • 1: $4.04000

ADG451BN

QUAD SPST SWITCH

ADG451BN Datasheet
  • 1: $4.04000

DG387ACJ

CMOS ANALOG SWITCH

DG387ACJ Datasheet
  • 1: $4.04000

ADG431BN

QUAD SPST SWITCH

ADG431BN Datasheet
  • 1: $4.04000

MAX351EPE

QUAD, SPST ANALOG SWITCH

  • 1: $4.04000

MAX4665CSE

QUAD,SPST ANALOG SWITCH

MAX4665CSE Datasheet
  • 1: $4.04000

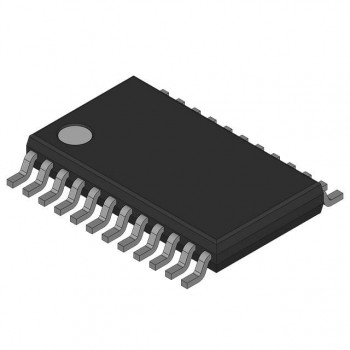

AD8186ARU-REEL7
