MUX508IPW

Texas Instruments
In Stock: 167

Can ship immediately

Pricing:
  • 1$2.0473
  • 270$2.0473

Quote It

Technical Details

  • Series:-
  • Package:Tube
  • Part Status:Active
  • Switch Circuit:-
  • Multiplexer/Demultiplexer Circuit:8:1
  • Number of Circuits:1
  • On-State Resistance (Max):170Ohm
  • Channel-to-Channel Matching (ΔRon):2.4Ohm
  • Voltage - Supply, Single (V+):10V ~ 36V
  • Voltage - Supply, Dual (V±):±5V ~ 18V



  • Switch Time (Ton, Toff) (Max):136ns, 75ns
  • -3db Bandwidth:-
  • Charge Injection:0.3pC
  • Channel Capacitance (CS(off), CD(off)):2.4pF, 7.5pF
  • Current - Leakage (IS(off)) (Max):1nA
  • Crosstalk:-96dB @ 1MHz
  • Operating Temperature:-40°C ~ 125°C (TA)
  • Mounting Type:Surface Mount
  • Package / Case:16-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package:16-TSSOP

Related Products


MUX509IPW

IC MUX DUAL 4:1 170 OHM 16TSSOP

  • 1: $2.04730
  • 270: $1.93326

ISL43141IBZ

IC SWITCH QUAD SPST 16SOIC

ISL43141IBZ Datasheet
  • 1: $2.06000
  • 10: $1.84766
  • 25: $1.74308

MAX4066CSD+T

IC SWITCH QUAD SPST 14SOIC

MAX4066CSD+T Datasheet
  • 1: $2.06700
  • 2500: $1.81759

MAX4066CEE+T

IC SWITCH QUAD SPST 16QSOP

MAX4066CEE+T Datasheet
  • 1: $2.06700
  • 2500: $1.81759

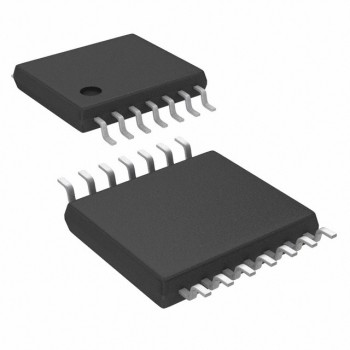

MAX4750EUD+
