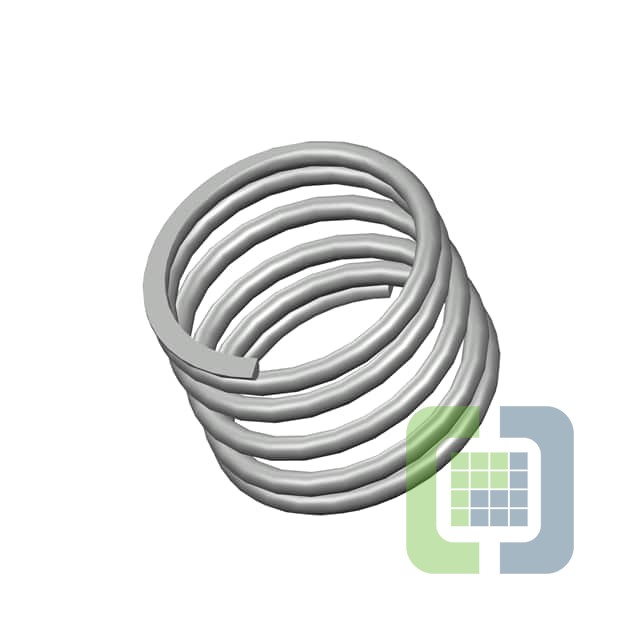

3789CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .593,L= .44,W= .048
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,224
Can ship immediately
Pricing:
- 1$2.87
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.048" (1.22mm)
- Diameter - Outside:0.593" (15.06mm)
- Diameter - Inside:0.497" (12.62mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.440" (11.18mm)
- Max Load:15.0 lbs
- Rate:13.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
