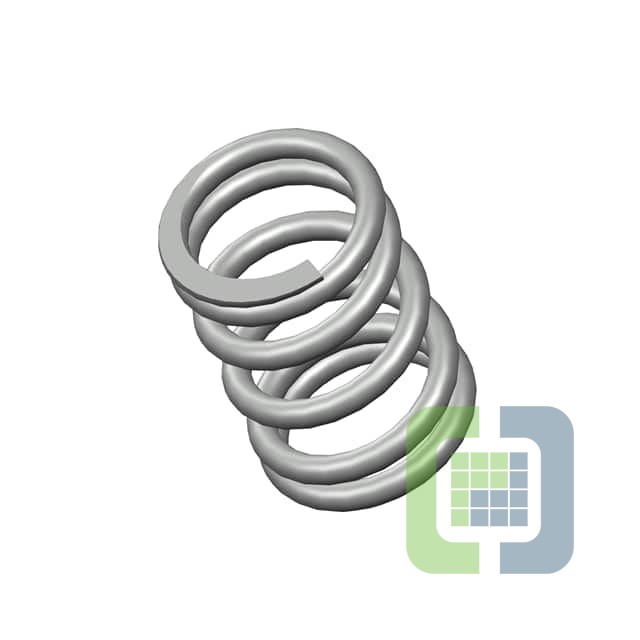

B10-40CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .500,L= .75,W= .065
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 892
Can ship immediately
Pricing:
- 1$2.87
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.065" (1.65mm)
- Diameter - Outside:0.500" (13.97mm)
- Diameter - Inside:0.370" (9.40mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.750" (19.05mm)
- Max Load:-
- Rate:83.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
