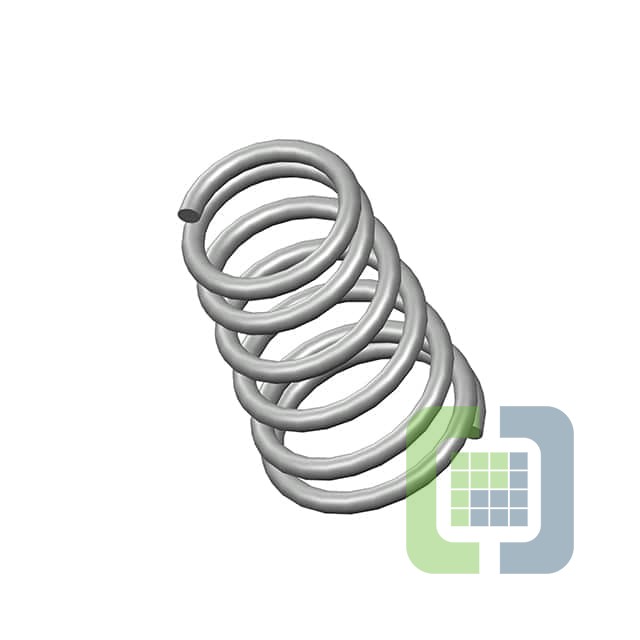

TA-2417CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLO= 0.81, SO= 0.66, W= 0.08
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 763
Can ship immediately
Pricing:
- 1$3.02
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.080" (2.03mm)
- Diameter - Outside:-
- Diameter - Inside:0.500" (12.70mm)
- Diameter - Small Outside:0.660" (16.76mm)
- Diameter - Large Outside:0.810" (20.57mm)
- Free Length:1.310" (33.27mm)
- Max Load:-
- Rate:49.3 lbs/in
- End Style:Closed
- Finish:None
