2722CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

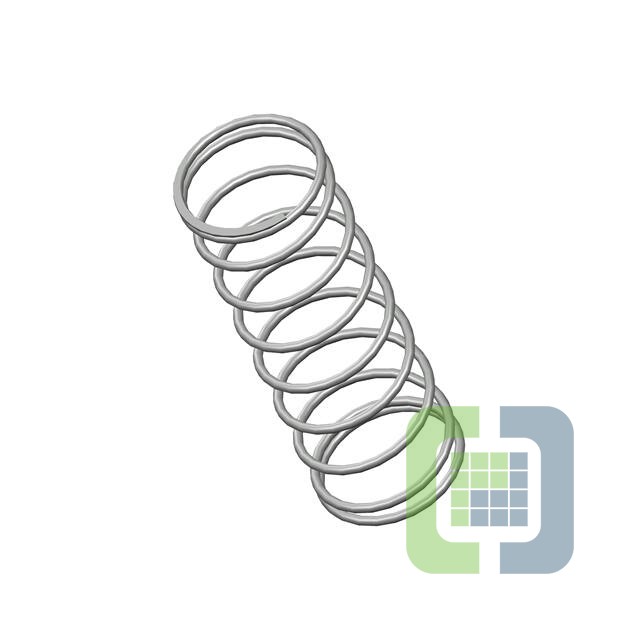

- DescriptionCOMP O= .562,L= 1.66,W= .035
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 736
Can ship immediately
Pricing:
- 1$3.17
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.035" (0.89mm)
- Diameter - Outside:0.562" (14.27mm)
- Diameter - Inside:0.492" (12.50mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.660" (42.16mm)
- Max Load:-
- Rate:1.9 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
