3659CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

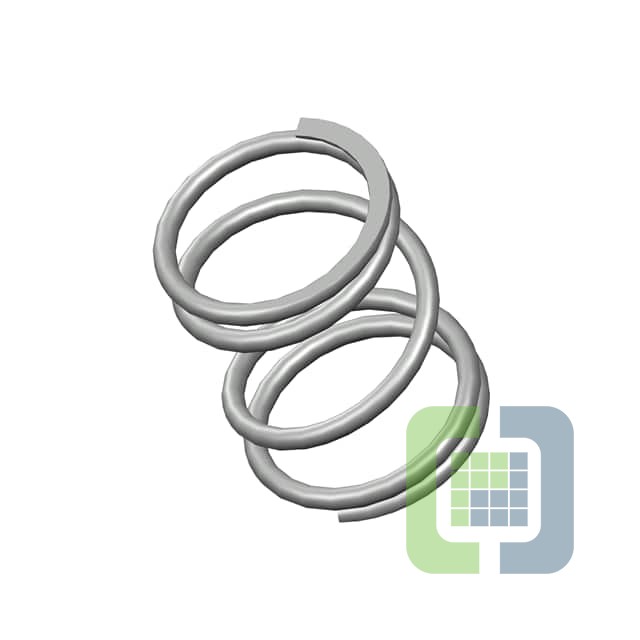

- DescriptionCOMP O= .578,L= .75,W= .052
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 247
Can ship immediately
Pricing:
- 1$3.21
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.052" (1.32mm)
- Diameter - Outside:0.578" (14.68mm)
- Diameter - Inside:0.474" (12.04mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.750" (19.05mm)
- Max Load:-
- Rate:29.0 lbs/in
- End Style:Closed & Ground
- Finish:Gold Iridite
