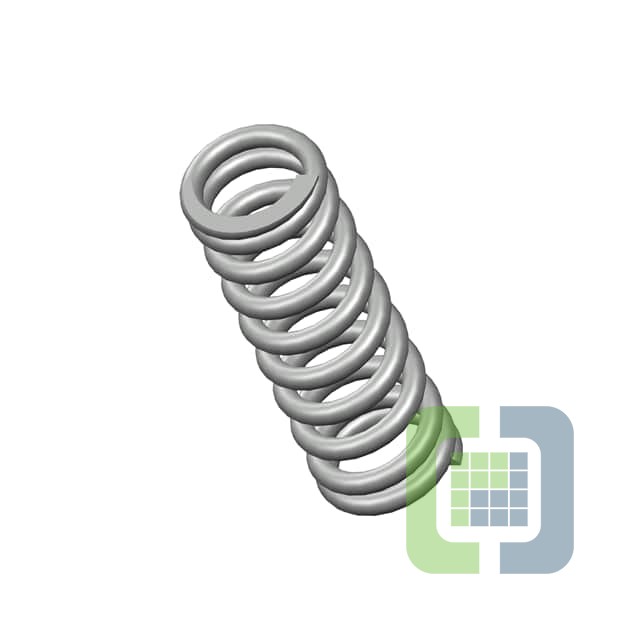

12256CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .609,L= 1.88,W= .095
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 560
Can ship immediately
Pricing:
- 1$3.27
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.095" (2.41mm)
- Diameter - Outside:0.609" (15.47mm)
- Diameter - Inside:0.419" (10.64mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.880" (47.75mm)
- Max Load:-
- Rate:108.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
