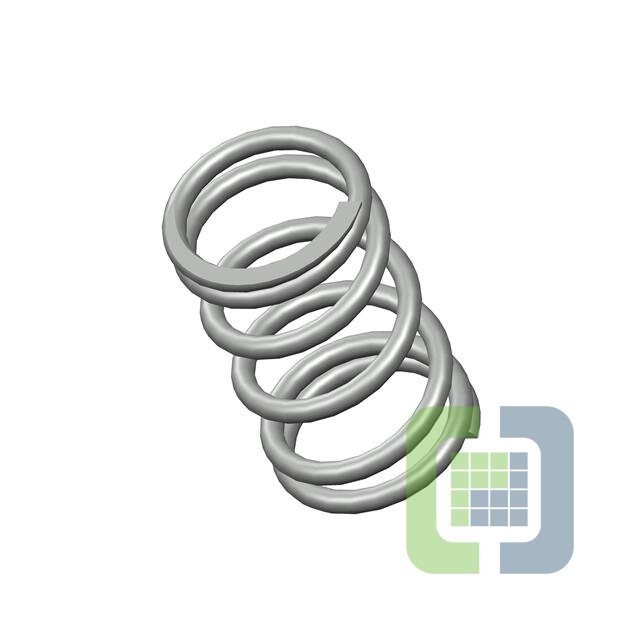

B5-24CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .250,L= .44,W= .028
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 8,536
Can ship immediately
Pricing:
- 1$3.34
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.028" (0.71mm)
- Diameter - Outside:0.250" (6.35mm)
- Diameter - Inside:0.194" (4.93mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.440" (11.18mm)
- Max Load:-
- Rate:20.0 lbs/in
- End Style:Closed & Ground
- Finish:None
