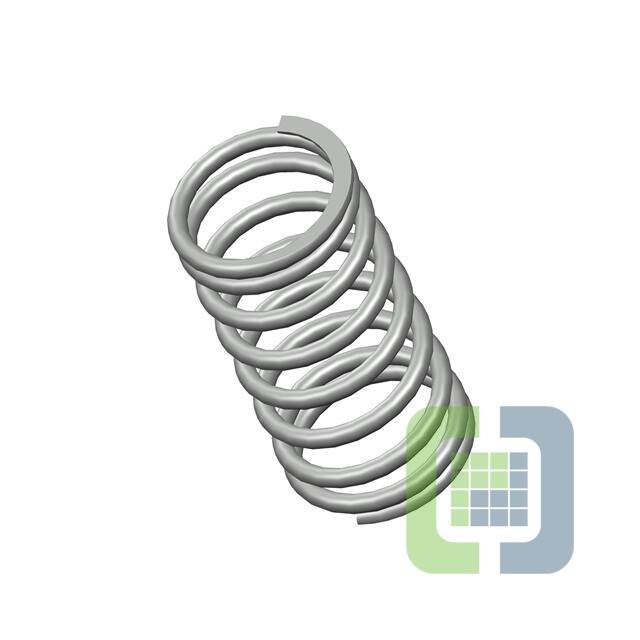

3517CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .703,L= 1.44,W= .072
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,584
Can ship immediately
Pricing:
- 1$3.44
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Hard Drawn
- Wire Diameter:0.072" (1.83mm)
- Diameter - Outside:0.703" (17.86mm)
- Diameter - Inside:0.559" (14.20mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.440" (36.58mm)
- Max Load:-
- Rate:24.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
