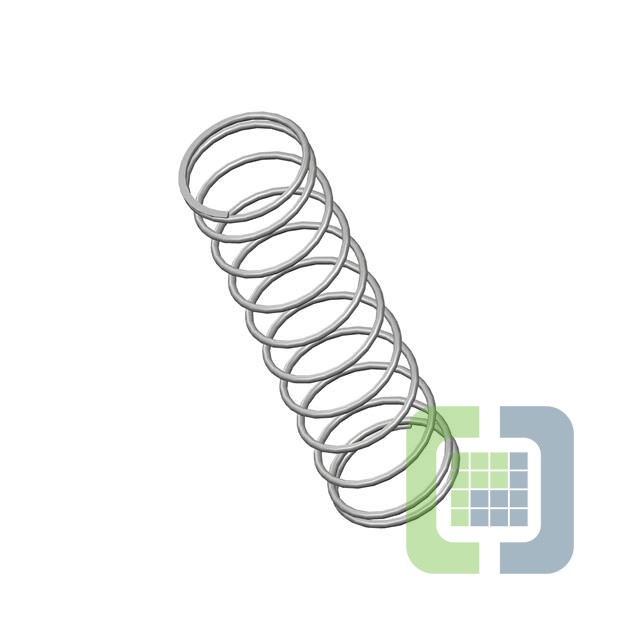

12436CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.062,L= 3.88,W= .062
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 455
Can ship immediately
Pricing:
- 1$3.59
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.062" (1.57mm)
- Diameter - Outside:1.062" (26.97mm)
- Diameter - Inside:0.938" (23.83mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:3.880" (98.55mm)
- Max Load:-
- Rate:2.2 lbs/in
- End Style:Closed
- Finish:Zinc
