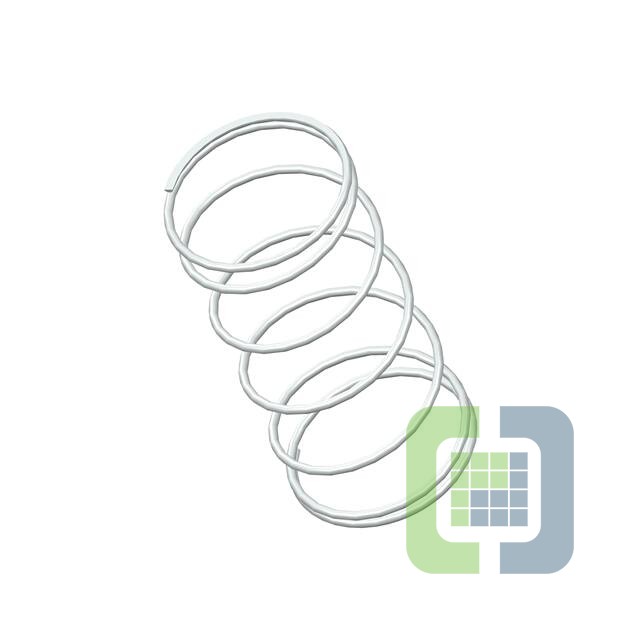

B8-49CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .609,L= 1.28,W= .028
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,260
Can ship immediately
Pricing:
- 1$3.81
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.028" (0.71mm)
- Diameter - Outside:0.609" (15.47mm)
- Diameter - Inside:0.553" (14.05mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.280" (32.51mm)
- Max Load:-
- Rate:0.8 lbs/in
- End Style:Closed & Ground
- Finish:None
