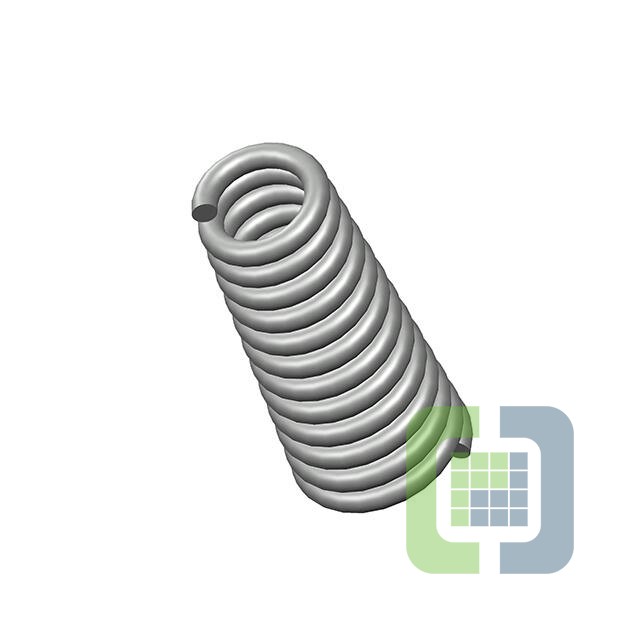

TA-2131CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLO= 0.75, SO= 0.562, W= 0.105
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 651
Can ship immediately
Pricing:
- 1$3.82
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.105" (2.67mm)
- Diameter - Outside:-
- Diameter - Inside:0.350" (8.89mm)
- Diameter - Small Outside:0.562" (14.27mm)
- Diameter - Large Outside:0.750" (19.05mm)
- Free Length:1.750" (44.45mm)
- Max Load:-
- Rate:99.5 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
