19CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

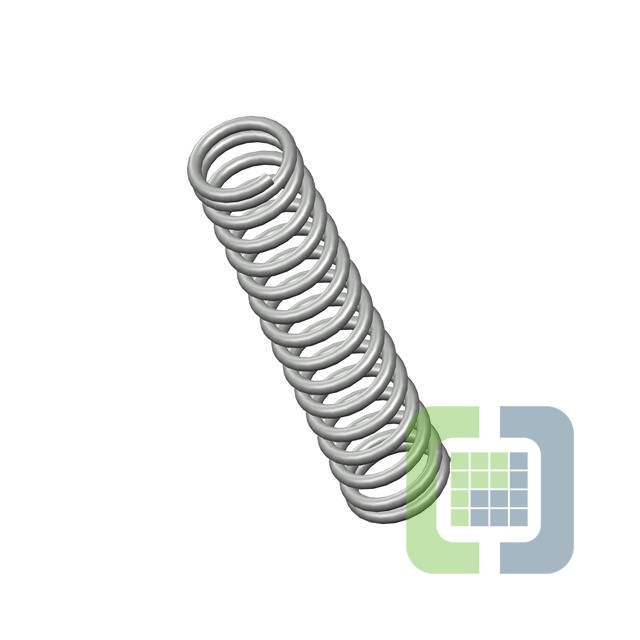

- DescriptionCOMP O= .625,L=3.00,W=.080
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,202
Can ship immediately
Pricing:
- 1$3.84
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Hard Drawn
- Wire Diameter:0.080" (2.03mm)
- Diameter - Outside:0.625" (15.88mm)
- Diameter - Inside:0.465" (11.81mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:3.000" (76.20mm)
- Max Load:-
- Rate:26.0 lbs/in
- End Style:Closed
- Finish:Zinc
