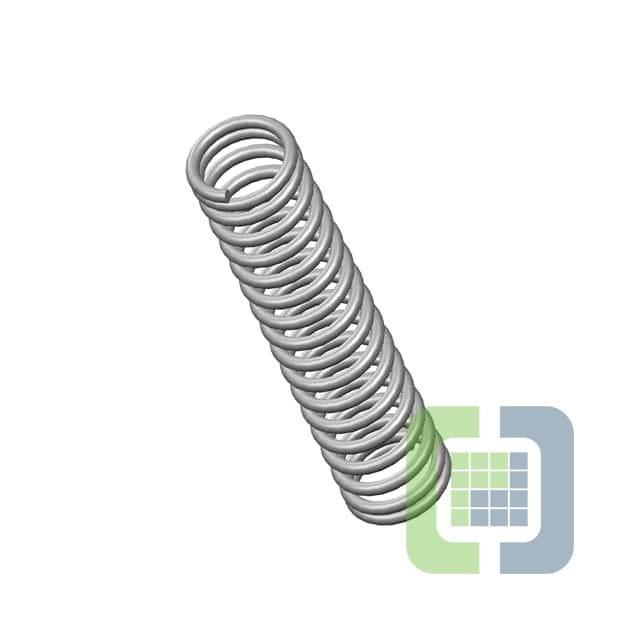

40CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .750,L=3.50,W= .0915
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,075
Can ship immediately
Pricing:
- 1$3.84
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Hard Drawn
- Wire Diameter:0.091" (2.31mm)
- Diameter - Outside:0.750" (19.05mm)
- Diameter - Inside:0.568" (14.43mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:3.500" (88.90mm)
- Max Load:-
- Rate:22.0 lbs/in
- End Style:Closed
- Finish:Zinc
