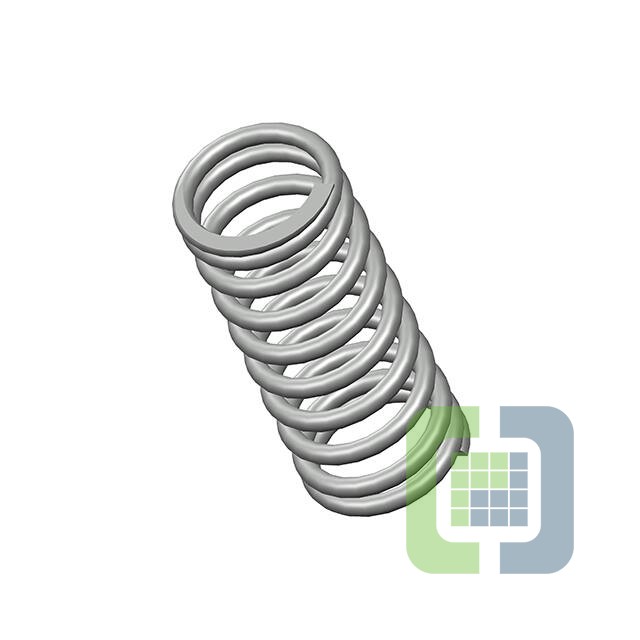

71CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.000,L= 2.50,W= .120
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 565
Can ship immediately
Pricing:
- 1$3.92
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Hard Drawn
- Wire Diameter:0.120" (3.05mm)
- Diameter - Outside:1.000" (25.40mm)
- Diameter - Inside:0.760" (19.30mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.500" (63.50mm)
- Max Load:-
- Rate:55.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
