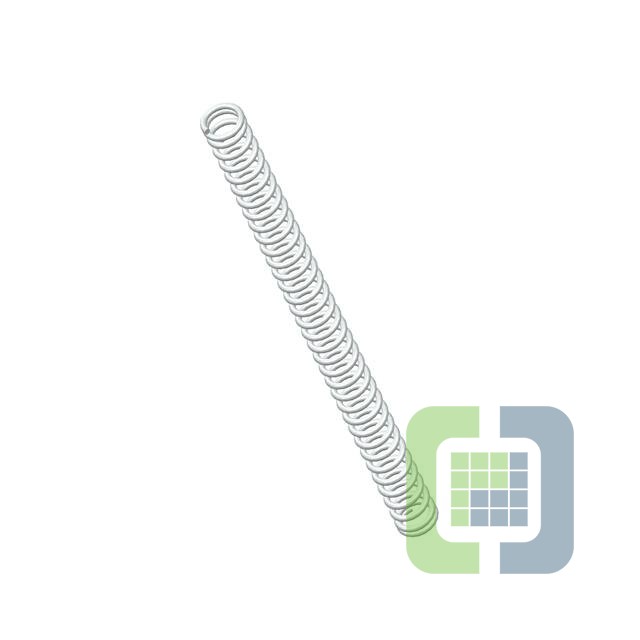

S-1685CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .437,L= 6.25,W= .064
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 359
Can ship immediately
Pricing:
- 1$3.92
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.064" (1.63mm)
- Diameter - Outside:0.437" (11.10mm)
- Diameter - Inside:0.309" (7.85mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:6.250" (158.75mm)
- Max Load:-
- Rate:12.0 lbs/in
- End Style:Closed
- Finish:None
