B10-21CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

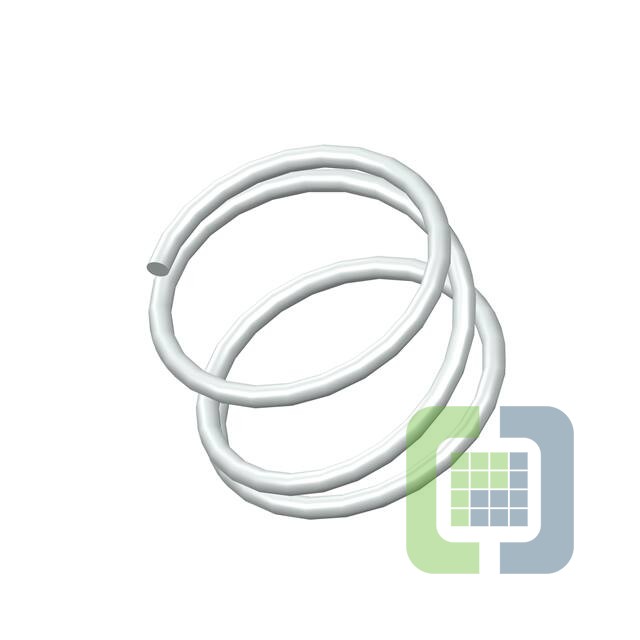

- DescriptionCOMP O= .671,L= .47,W= .0475
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 314
Can ship immediately
Pricing:
- 1$3.93
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.048" (1.22mm)
- Diameter - Outside:0.671" (17.04mm)
- Diameter - Inside:0.575" (14.61mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.470" (11.94mm)
- Max Load:-
- Rate:28.0 lbs/in
- End Style:Closed
- Finish:None
