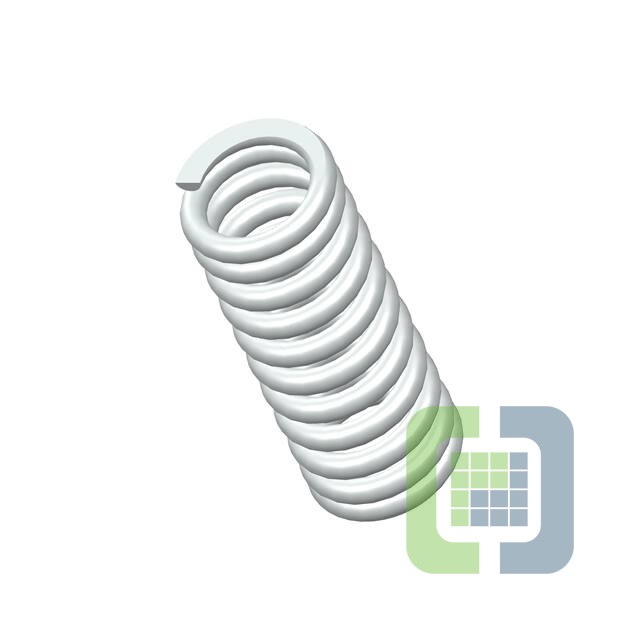

H-87CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .500,L= 1.31,W= .080
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 677
Can ship immediately
Pricing:
- 1$4.04
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.080" (2.03mm)
- Diameter - Outside:0.500" (13.97mm)
- Diameter - Inside:0.340" (8.64mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.310" (33.27mm)
- Max Load:-
- Rate:77.0 lbs/in
- End Style:Closed & Ground
- Finish:None
