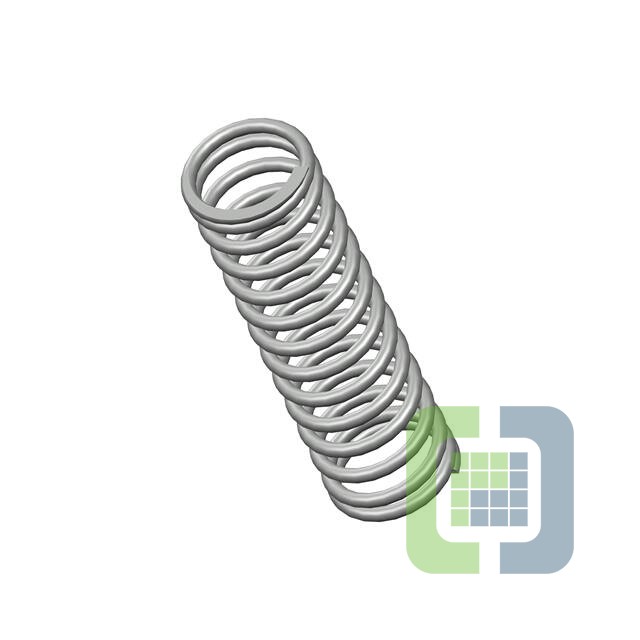

12322CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .781,L= 2.78,W= .086
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 343
Can ship immediately
Pricing:
- 1$4.04
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.086" (2.18mm)
- Diameter - Outside:0.781" (19.84mm)
- Diameter - Inside:0.609" (15.47mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.780" (70.61mm)
- Max Load:-
- Rate:20.0 lbs/in
- End Style:Closed & Ground
- Finish:Gold Iridite
