3152CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

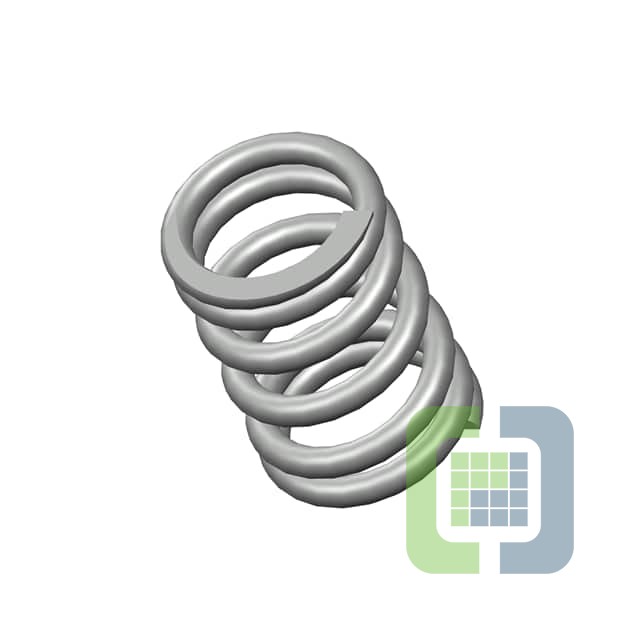

- DescriptionCOMP O= .765,L= 1.16,W= .107
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 447
Can ship immediately
Pricing:
- 1$4.1
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.107" (2.72mm)
- Diameter - Outside:0.765" (19.43mm)
- Diameter - Inside:0.551" (14.00mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.160" (29.46mm)
- Max Load:-
- Rate:165.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
