10470CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

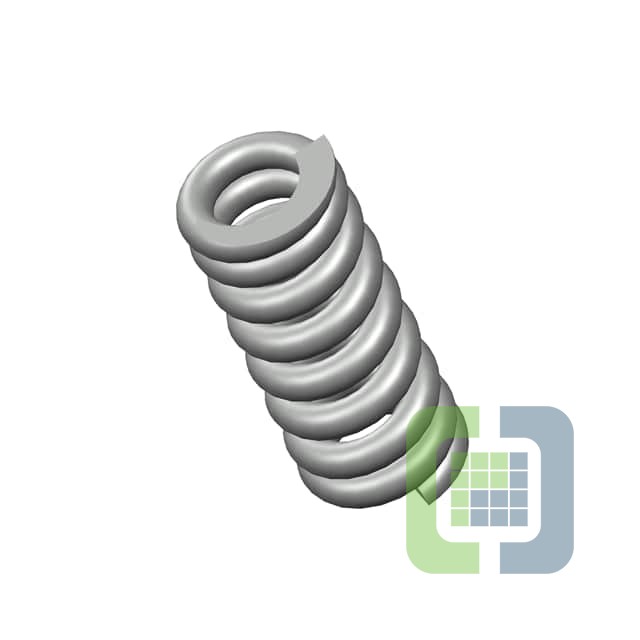

- DescriptionCOMP O= .468,L= 1.19,W= .102
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 626
Can ship immediately
Pricing:
- 1$4.11
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.102" (2.59mm)
- Diameter - Outside:0.468" (11.89mm)
- Diameter - Inside:0.264" (6.71mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.190" (30.23mm)
- Max Load:-
- Rate:508.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
