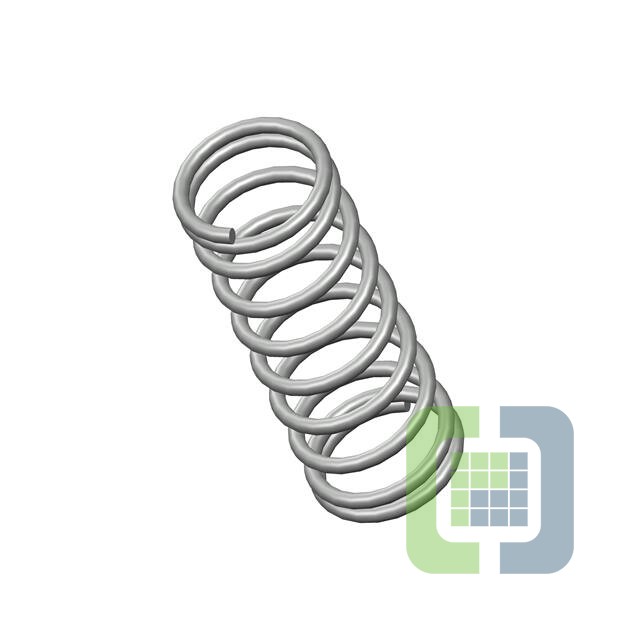

CC-47CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .796,L= 2.28,W= .080
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 359
Can ship immediately
Pricing:
- 1$4.38
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.080" (2.03mm)
- Diameter - Outside:0.796" (20.22mm)
- Diameter - Inside:0.636" (16.15mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.280" (57.91mm)
- Max Load:-
- Rate:21.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
