11596CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

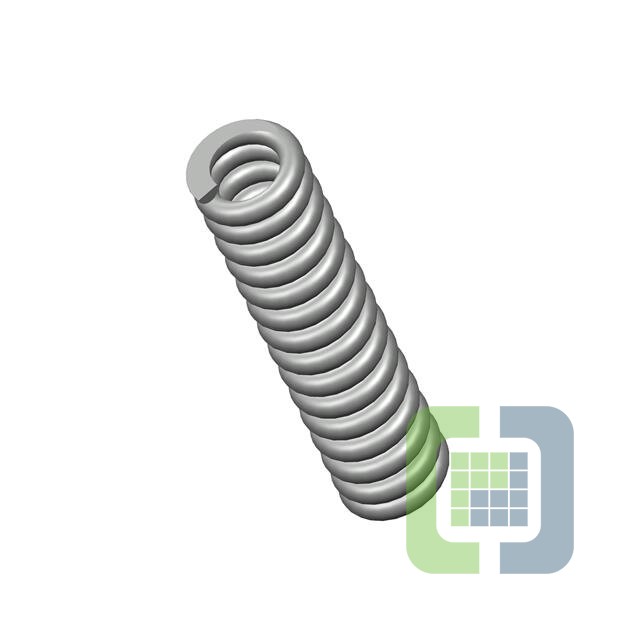

- DescriptionCOMP O= .640,L= 2.69,W= .135
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 455
Can ship immediately
Pricing:
- 1$4.44
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.135" (3.43mm)
- Diameter - Outside:0.640" (16.25mm)
- Diameter - Inside:0.370" (9.40mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.690" (68.33mm)
- Max Load:-
- Rate:278.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
