O-36CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

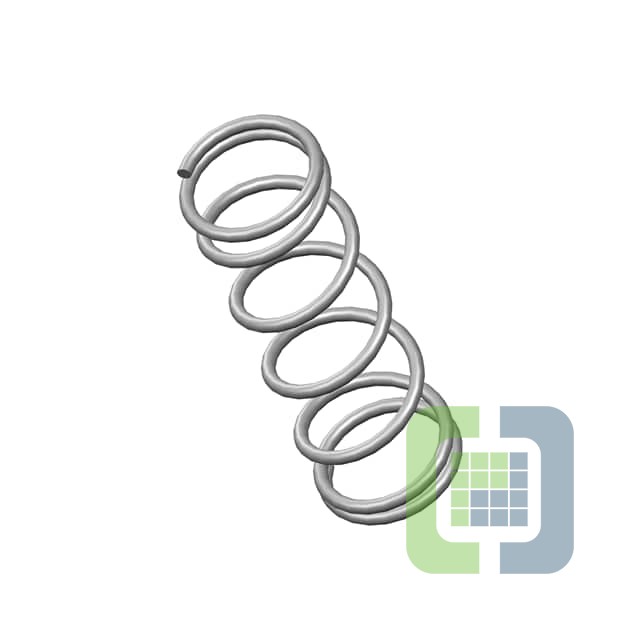

- DescriptionCOMP O= .188,L= .59,W= .018
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,730
Can ship immediately
Pricing:
- 1$4.48
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.018" (0.46mm)
- Diameter - Outside:0.188" (4.78mm)
- Diameter - Inside:0.152" (3.86mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.590" (14.99mm)
- Max Load:-
- Rate:6.1 lbs/in
- End Style:Closed
- Finish:None
