3960CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

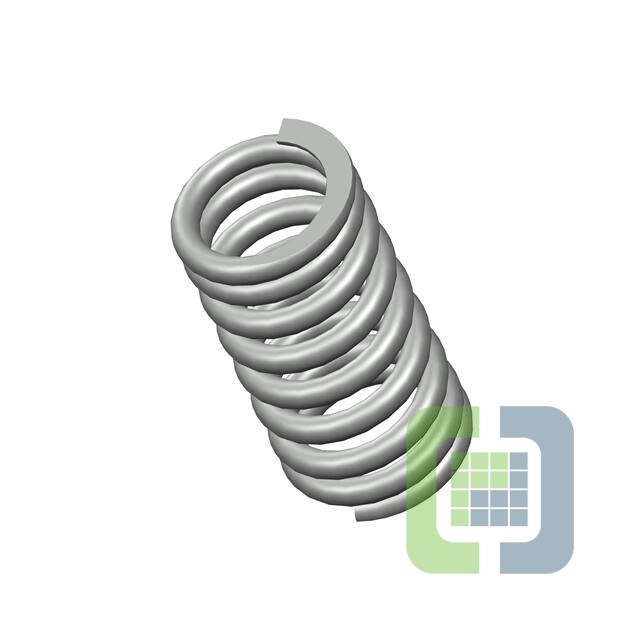

- DescriptionCOMP O= .812,L= 1.63,W= .120
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 565
Can ship immediately
Pricing:
- 1$4.65
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.120" (3.05mm)
- Diameter - Outside:0.812" (20.62mm)
- Diameter - Inside:0.572" (14.53mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.630" (41.40mm)
- Max Load:-
- Rate:138.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
