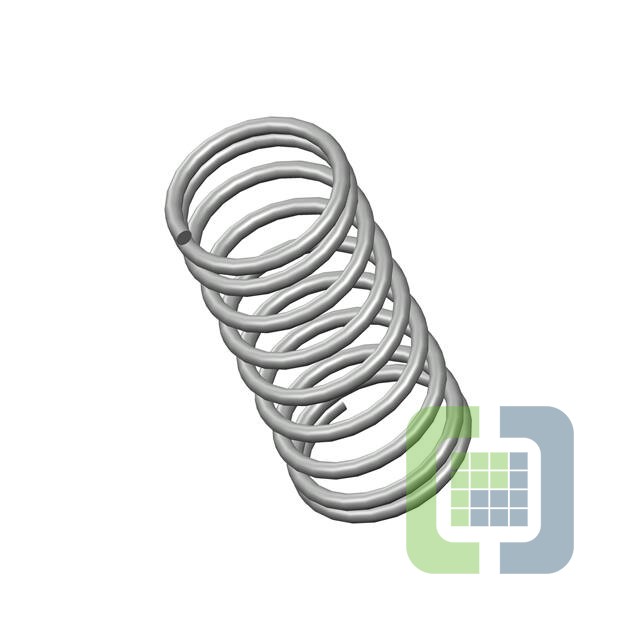

3368CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.156,L= 2.63,W= .105
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 237
Can ship immediately
Pricing:
- 1$4.65
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.105" (2.67mm)
- Diameter - Outside:1.156" (29.36mm)
- Diameter - Inside:0.946" (24.03mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.630" (66.80mm)
- Max Load:-
- Rate:21.0 lbs/in
- End Style:Closed & Ground
- Finish:Gold Iridite
