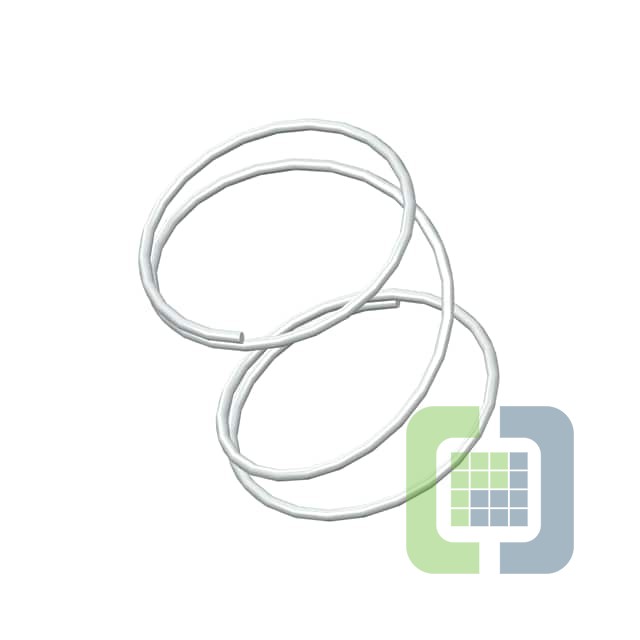

12699CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .953,L= 1.00,W= .040
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 3,081
Can ship immediately
Pricing:
- 1$4.72
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.040" (1.02mm)
- Diameter - Outside:0.953" (24.21mm)
- Diameter - Inside:0.873" (22.17mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.000" (25.40mm)
- Max Load:15.0 lbs
- Rate:2.8 lbs/in
- End Style:Closed
- Finish:None
