GG-31CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

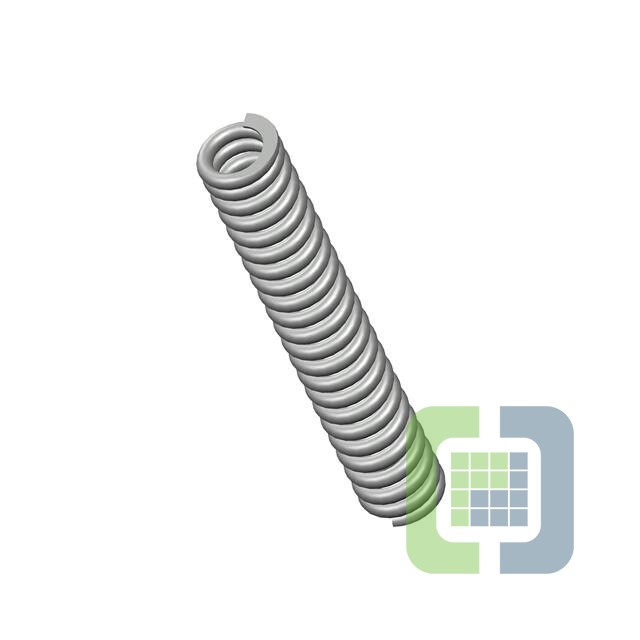

- DescriptionCOMP O= .172,L= 1.06,W= .032
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 688
Can ship immediately
Pricing:
- 1$4.9
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.032" (0.81mm)
- Diameter - Outside:0.172" (4.37mm)
- Diameter - Inside:0.108" (2.74mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.060" (26.92mm)
- Max Load:-
- Rate:27.0 lbs/in
- End Style:Closed & Ground
- Finish:None
