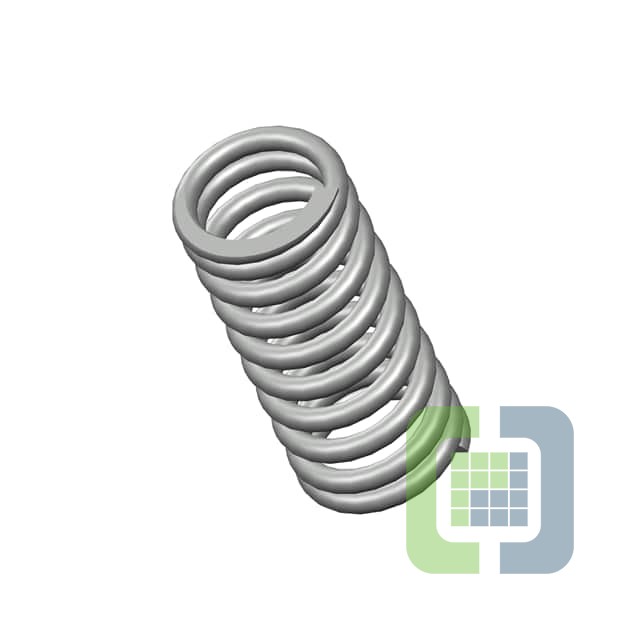

3942CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.062,L= 2.50,W= .148
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 265
Can ship immediately
Pricing:
- 1$5.07
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.148" (3.76mm)
- Diameter - Outside:1.062" (26.97mm)
- Diameter - Inside:0.766" (19.46mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.500" (63.50mm)
- Max Load:-
- Rate:113.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
