S-194CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

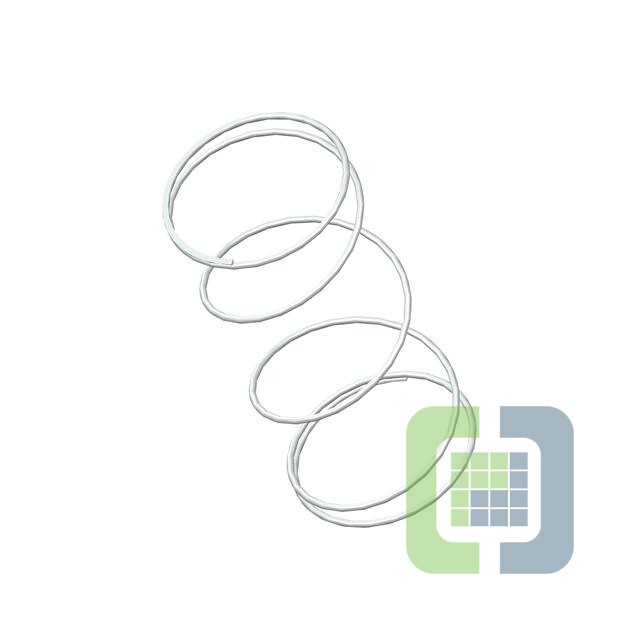

- DescriptionCOMP O=1.125,L= 2.44,W= .040
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 860
Can ship immediately
Pricing:
- 1$5.27
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.040" (1.02mm)
- Diameter - Outside:1.125" (28.58mm)
- Diameter - Inside:1.045" (26.54mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.440" (61.98mm)
- Max Load:-
- Rate:0.72 lbs/in
- End Style:Closed
- Finish:None
