2774CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

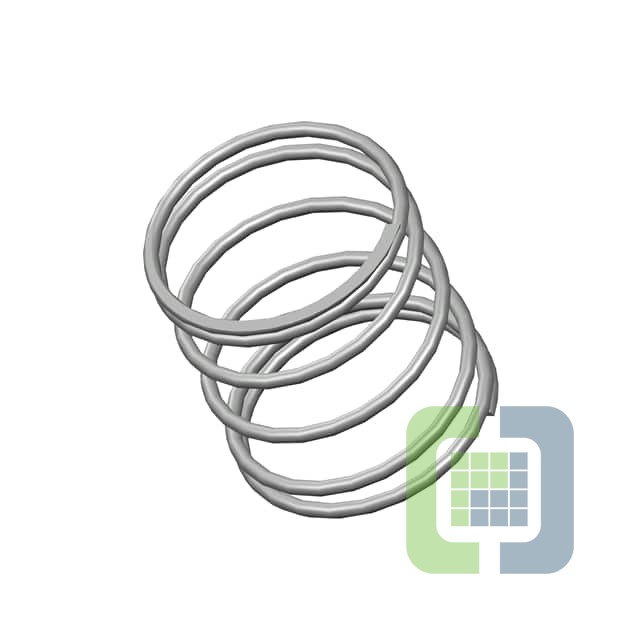

- DescriptionCOMP O=1.343,L= 1.50,W= .076
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 265
Can ship immediately
Pricing:
- 1$5.37
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.076" (1.93mm)
- Diameter - Outside:1.343" (34.11mm)
- Diameter - Inside:1.191" (30.25mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.500" (38.10mm)
- Max Load:-
- Rate:5.9 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
