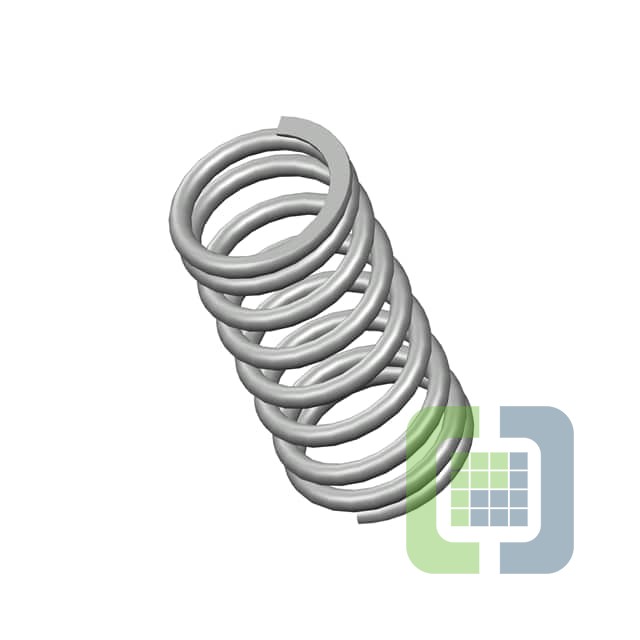

1797CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.172,L= 2.44,W= .135
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 691
Can ship immediately
Pricing:
- 1$5.45
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Hard Drawn
- Wire Diameter:0.135" (3.43mm)
- Diameter - Outside:1.172" (29.77mm)
- Diameter - Inside:0.902" (22.91mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.440" (61.98mm)
- Max Load:-
- Rate:66.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
