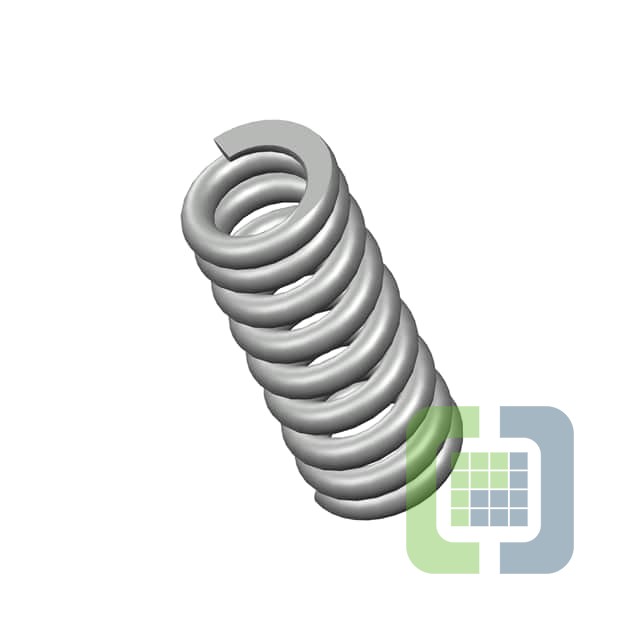

10052CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .796,L= 2.00,W= .156
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 290
Can ship immediately
Pricing:
- 1$5.54
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.156" (3.96mm)
- Diameter - Outside:0.796" (20.22mm)
- Diameter - Inside:0.484" (12.29mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.000" (50.80mm)
- Max Load:-
- Rate:481.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
