3006CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

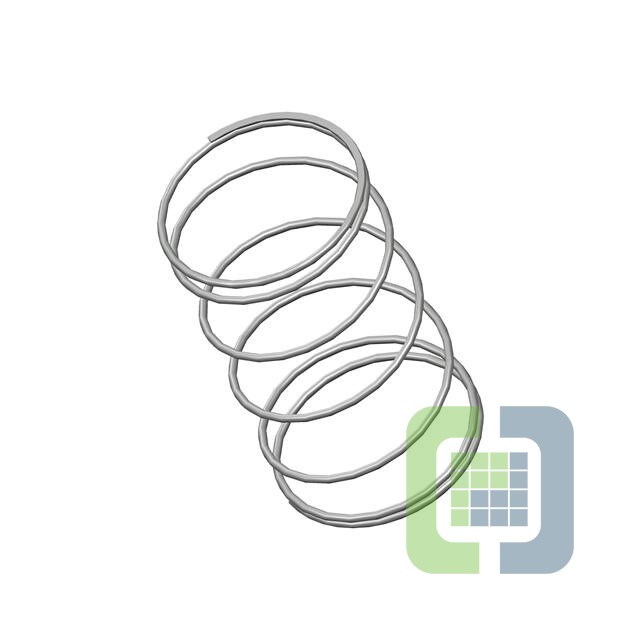

- DescriptionCOMP O=1.765,L= 3.13,W= .067
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 632
Can ship immediately
Pricing:
- 1$5.74
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.067" (1.70mm)
- Diameter - Outside:1.765" (44.83mm)
- Diameter - Inside:1.631" (41.43mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:3.130" (79.50mm)
- Max Load:-
- Rate:1.2 lbs/in
- End Style:Closed
- Finish:Zinc
