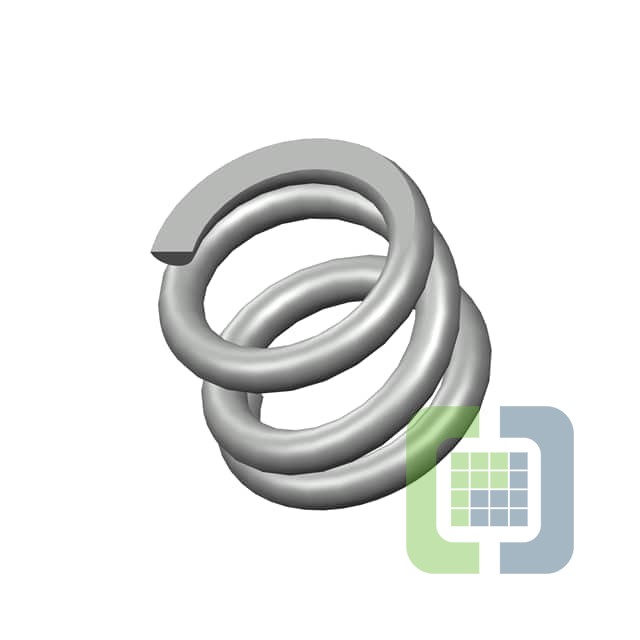

10942CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .875,L= .69,W= .135
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,274
Can ship immediately
Pricing:
- 1$6.46
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.135" (3.43mm)
- Diameter - Outside:0.875" (22.23mm)
- Diameter - Inside:0.605" (15.37mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.690" (17.53mm)
- Max Load:-
- Rate:1178.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
